Screw conveyor is one of the most reliable and cost-effective ways to bulk material handling. It is a very versatile machine that can handle a wide variety of materials: from dry, free-flowing materials to wet and slow materials. A screw conveyor is a mechanism that uses a rotating auger flight, usually within a U-shaped Trough, Rectangular Trough, Tubular Trough, or Jacketed Trough to handle liquid ,powder and granular materials.
Screw conveyors primarily consist of a rotating screw shaft that is installed within a trough. As the screw shaft rotates, the material moves linearly. They can be designed to provide horizontal, vertical, and inclined travel paths. Uses of Shaft less Screw Conveyors as well can be seen in many Industries
Conveying Type : Horizontal ,Vertical & Incline .
Screw Type : Screw, Paddle, Paddle & Screw, Ribbon, Shaft-Less Type.
Pitch Type : Same Pitch, Short Pitch, Long Pitch & Half Pitch.
Uses : Powder, Granular & Liquid materials, from dry and free-flowing materials to wet and slow materials
MOC : M.S.;S.S.
Size : 150 mm to 500 mm
Capacity : 1 to 25 TPH

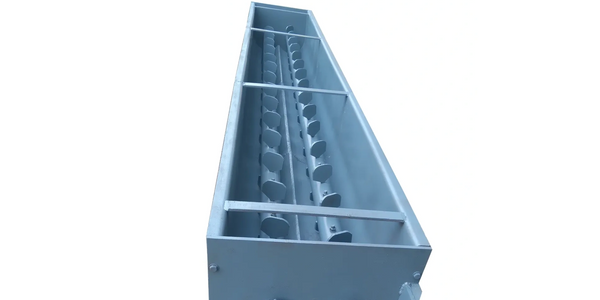

Screw Type : Paddle

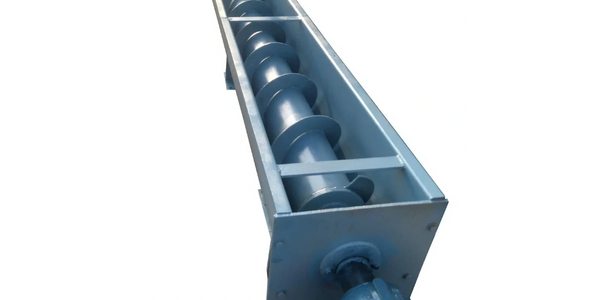

Screw Type : Screw
